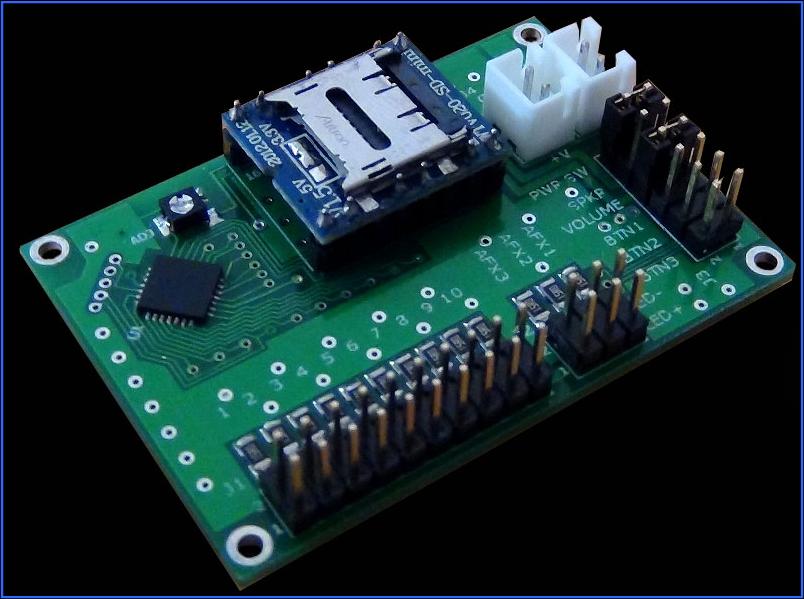

MENUM-UFX LIGHTING/AUDIO CIRCUIT BOARDNEW!

This circuit board produces lighting effects and audio sounds.

The control interface is 3 push buttons to activate 3 audio reactive outputs.



AUDIO FUNCTIONS:



BTN1 TAP Plays audio files 0000 to 0199. File # played is saved after power off.

Output AFX1 illumination is reactive to the sound played.



BTN2 TAP Plays audio files 0200 to 0299. File # played is saved after power off.

Output AFX2 illumination is reactive to the sound played.



BTN3 TAP Plays audio files 0300 to 0399. File # played is saved after power off.

Output AFX3 illumination is reactive to the sound played.



POWER UP When device is turned on, audio file 0400 is played.

Output AFX1 illumination is reactive to the sound played.



AUDIO FILES Sound files are in PCM/WAV format. Use only numbers 0000.wav to 0511.wav.

When a button is pressed sound will begin after 1/4 of a second.

Audio files should be at least 1/2 second long.



LED FUNCTIONS:



HEADER 1 : Blink (quick flash ON, short pause, then repeat)

HEADER 2 : Blink (longer flash ON, slightly longer pause, then repeat)

HEADER 3 : NAVIGATION LIGHTS FAST DOUBLE-Blink (DOUBLE-flash ON, pause, then repeat)

HEADER 4 : NAVIGATION LIGHTS DOUBLE-Blink (DOUBLE-flash ON, longer pause, then repeat)

HEADER 5 : FAST Strobe

HEADER 6 : SLOWER Strobe

HEADER 7 : FAST FADE UP/DOWN

HEADER 8 : SLOW FADE UP/DOWN

HEADER 9 : PULSING UP/DOWN (INTENSITY 80% down to 55%, then back up)
HEADER 10 : CONSTANT ON



AFX 1 : React to the audio played from Button 1 (BTN1)

AFX 2 : React to the audio played from Button 2 (BTN2)

AFX 3 : React to the audio played from Button 3 (BTN3)



SPECIFICATIONS:



Supply Voltage:† 5V to 9V DC† (circuit board is regulated at 3.3v)

Current:†††††††††††††††† 1A max

Consumes:††††††††††† 50mA during idle (no audio no LEDs connected)

Protection:†††††††††† Reverse polarity Diode included on the board



Memory Card

Card type:†††††††††††† Micro-SD† Standard capacity (SDSC)

Card size:††††††††††††† 128mb to 512mb

File type:†††††††††††††† PCM/WAV (converted from MP3 or std WAV)

File format: †††††††† 0000.wav to 0511.wav

Sample rate:† ††††† 16,000 Hz, MONO



Audio

Channels:††††††††††††† Mono output

Impedance:††††††††† 8 ohms speaker

Volume:†††††††††††††††† 500 ohm rheostat (variable resistor)



Dimensions

Width x Length:† 58 x 40 mm††† (2.28 x 1.57 in)

Height:†† †††††††††††††††† 12 mm†† (0.47 in)

RECORD YOUR OWN AUDIO FILES!† 13 DIFFERENT LED SPFX MODES!†

INSTALL UP TO 130 LEDíS!† SIMPLY AMAZING AND EASY TO USE!

WHAT
YOU

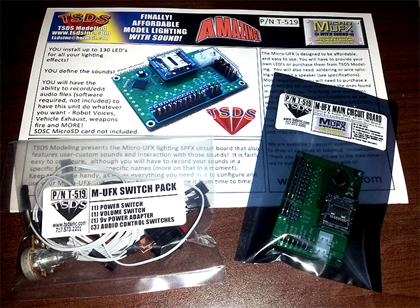

GET!

CUSTOM PROGRAMMING AVAILABLE!





LOOKING FOR A LIGHTING EFFECT WE DID NOT INCLUDE?†

ITíS HARD TO BELIEVE, BUT POSSIBLE!† FOR A SMALL FEE, WE CAN CUSTOM PROGRAM ANY SPECIAL LIGHT SEQUENCE FOR YOU!† EMAIL FOR DETAILS!

TINY!† ONLY

2.28 x 1.57 inches!

9v BATTERY POWERED!

EASY TO USE!

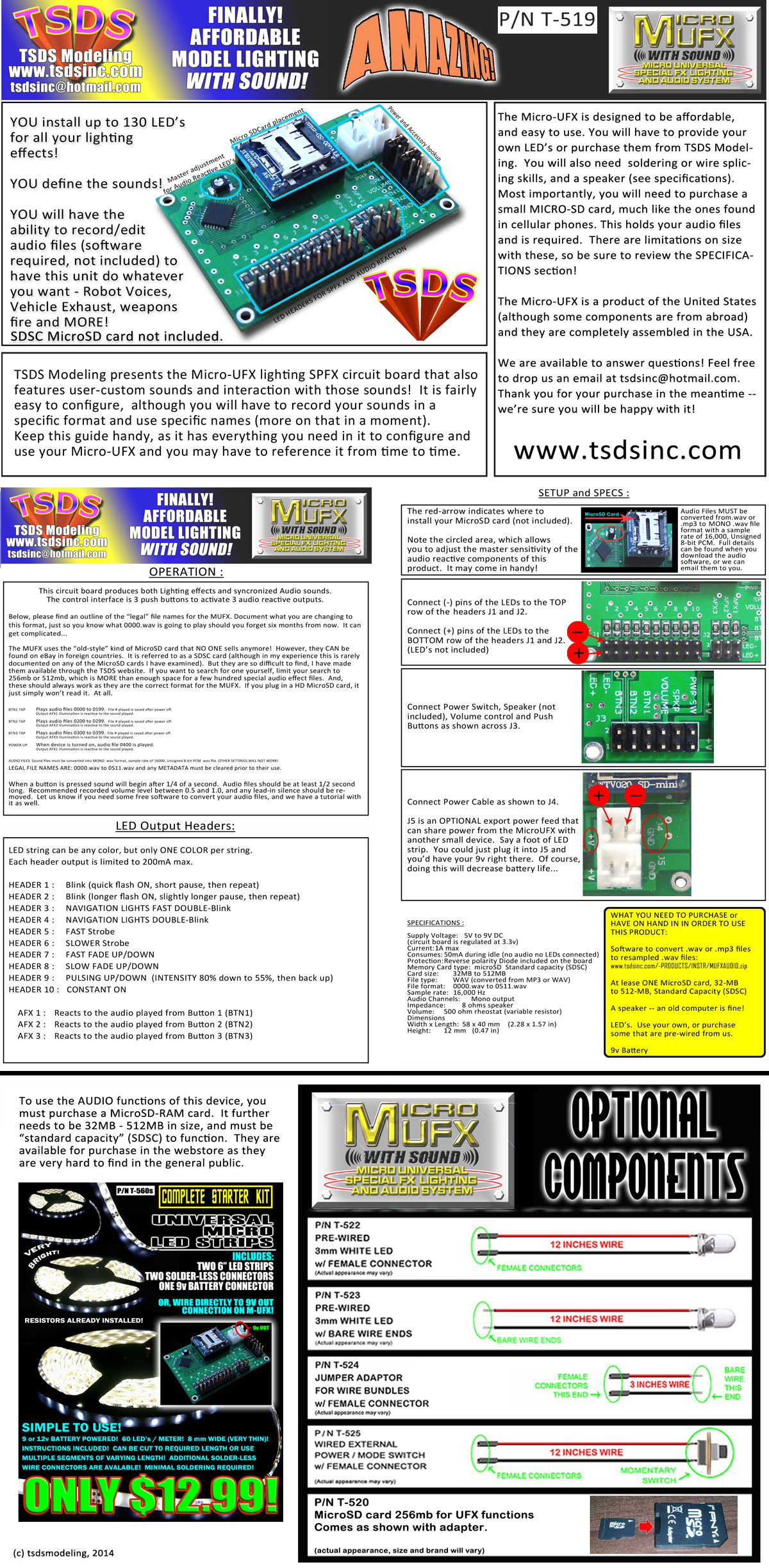

PREVIEW THE FULL M-UFX
